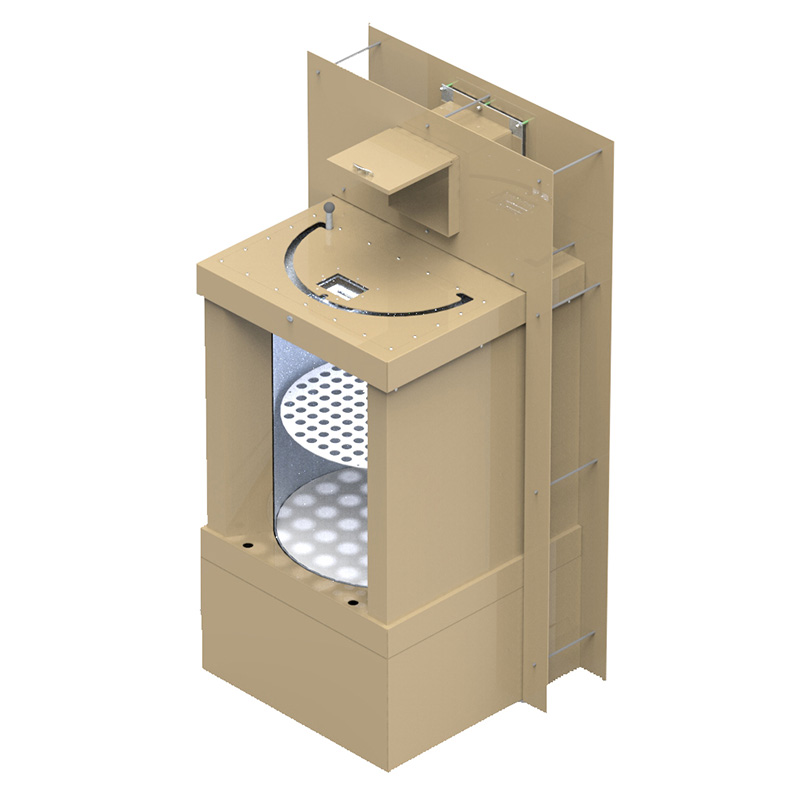

Cylindrical Transfer Unit
- Aesthetically pleasing, robust secure, user-friendly unit.
- Standard handgun and ammo resistant.
- Sledge hammer resistant.
- Easy quick passage of goods whilst offering high degrees of safety to personnel.
- Modular construction and easily installed and commissioned.
- Removable and re-usable as often as required.
- life expectancy of at least 10 years, subject to normal usage and maintenance.
- High risk and vulnerable areas at Banks, Cash Centre’s, Embassies, Mines, Prisons, Hospitals, Commercial, Government and Financial etc institutions.
- Control rooms and data centres.
- Standard handgun and ammo resistant.
- Sledge hammer resistant.
- Easy quick passage of goods whilst offering high degrees of safety to personnel.
- Modular construction and easily installed and commissioned.
- Removable and re-usable as often as required.
- Secure alarm contacts.
- Raised plinth or base.
- Interface with all reputable building management systems incorporating technology such as Bio metric readers etc.
- Time delay unlocking.
- Motorized.
- Adjustable grip frame with integrated BRG view panel with document tray and wall grip frame.
- Remote control and monitoring of above facilities.
- AK 47 and R1 rifle resistant.
- Upgrading the outer frame and providing two interlocking hinged doors for additional security.
- Powder coating and other finished to suit individual requirements.
- Dividing shelve.
| Goods Transfer Opening: | 415mm (w) x 775mm (h) x 540mm(d) |
| Outside: | 765mm (w) x 975mm (h) |
| Wall opening: | 900mm (w) x 1040mm (h) (Grip Frame only) |
| Wall opening: | 900mm (w) x 1760mm (h) (Grip Frame, Plinth & View panel) |
| Other size units are made to order | |
| Power Supply requirements:
Required for optional extras | Clean constant 220 V AC 15amp
|
| Emergency Power Supply:
Provided for optional extras | 1.3Amp hour rechargeable battery supply |
