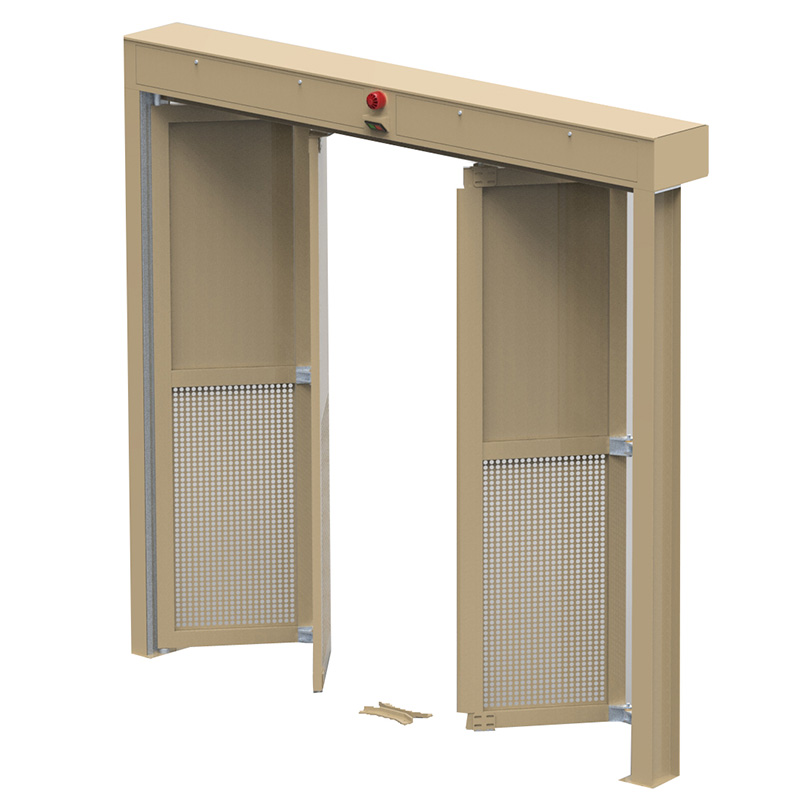

Vehicle Swiftgate
- Designed for very fast access control at vehicle entrances and exit in high security and conventional areas (opening or closing time some 4 seconds).
- Vulnerable areas at Banks, Cash Centres, Embassies, Mines, Prisons, Hospitals, Commercial, Government and Financial institutions, security complexes, private dwellings etc.
- Vulnerable areas at Banks, Cash Centres, Embassies, Mines, Prisons, Hospitals, Commercial, Government and Financial institutions, security complexes, private dwellings etc.
- Top driven design.
- 254mm x 254mm x 156mm universal column gate posts allowing brickwork to be built in.
- Mild Steel tube frame with 1.6mm mild steel epoxy powder coated finish 1.6mm infills.
- Drive mechanism consists of a purpose designed, two directional dual actuator which is powered by a single DC motor.
- Motor controller is in-house designed and built with state of the art features and functionality derived from hands on experience in the arms and aviation industries.
- Door system operated off single phase 220V 15amp AC power, with the internal systems operating on 24V DC to a max peak of 15amp.
- Mechanical lock complete with mechanical key override.
- Photoelectric or infrared detection beams.
- Gate leaves with different infill’s to suit individual requirements.
- Vehicle detection loop.
- Side driven design available
- Interface with all reputable building management systems.
- Powder coating or final finish to suit individual requirements.
- Custom dimensions are available within reason.
- Pedestrian door within door leaf.
ITAS Swift gates are available in the following clear opening sizes and reasonable alternative sizes can be accommodated.
| Top Driven | ||
| External: | 4000mm (wide) x 3700mm (high) | |
| Clear Opening: | 3200mm (wide) x 3320mm (high) |
| Power Supply requirements: | Clean constant 220 V AC 15amp |
| Emergency Power Supply Provided: | 34Amp hour rechargeable battery supply |
