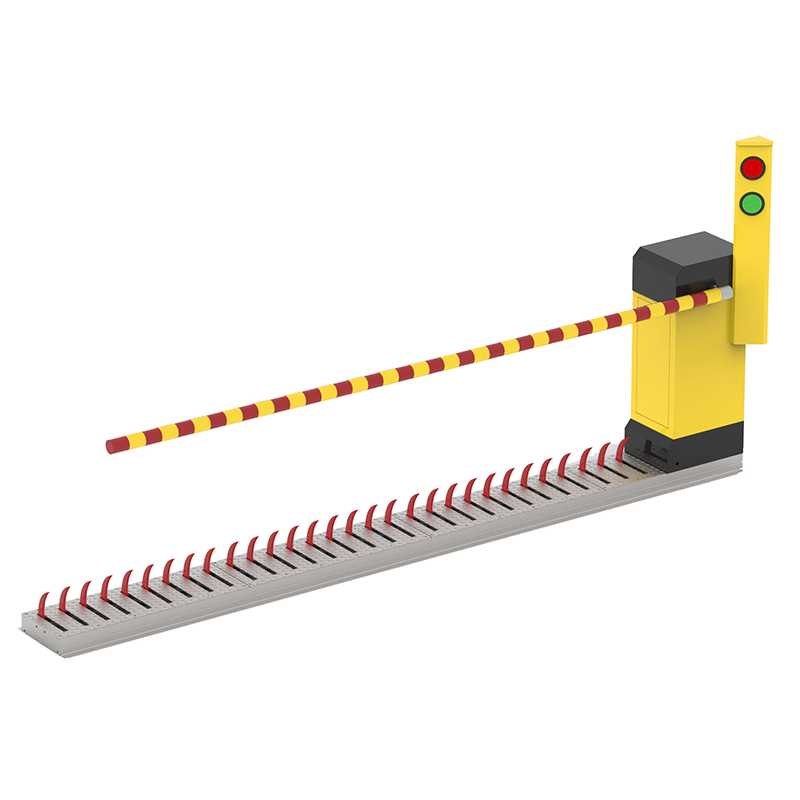

Spike Gripper with Boom Barrier
- Aesthetically pleasing, robust secure user-friendly automated vehicle entrance and exit control barrier to accommodate vehicles with a minimum delay and inconvenience
- Vulnerable vehicle entrances at Banks, Cash Centres, Embassies, Mines, Prisons, Hospitals, Commercial, Secure Complexes, Government and Financial etc institutions.
- Control room and data centre vehicle entrances.
- life expectancy of at least 10 years, subject to normal usage and maintenance.
- Vulnerable vehicle entrances at Banks, Cash Centres, Embassies, Mines, Prisons, Hospitals, Commercial, Secure Complexes, Government and Financial etc institutions.
- Control room and data centre vehicle entrances.
- Surface mounted and recessed 3 to 6 meter barriers.
- Deterrent for the criminal element.
- Manual operating facilities in the event of total power or system failure.
- Aluminium boom pole.
- Mild Steel Powder coated housing to individual requirements.
- Available fully or sub-assembled.
- Remote monitoring and control.
- Interface with all reputable building management systems with Bio-metric readers etc.
- Combined logic and loop detector.
- 3CR Power coated housing.
- 304 Stainless Steel housing.
- 304 Brushed stainless steel housing.
- Safety beam transmitter.
- Green/Red dual traffic light.
- Gravity fed card drop box.
- Car goose neck configuration.
- Dual car/truck goose neck configuration.
| Recessed Unit | Surface Unit | |
| Barrier Housing: | 970mm (h) x 335mm (w) x 400mm (d) | 970mm (h) x 335mm (w) x 400mm (d) |
| Boom Pole Length: | 3000/3500/4000/4500/5000/5500mm/6000/mm | |
| Spike Trays: | 75mm (h) x 402mm (w) | 75mm (h) x 402mm (w) |
| Spike Rising Height: | 120mm (h) x optional 180mm (h) | 120mm (h) x optional 180mm (h) |
| Power Supply requirements: | Clean constant 220 V AC 15amp |
