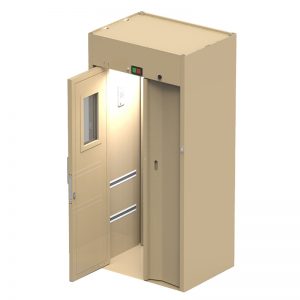

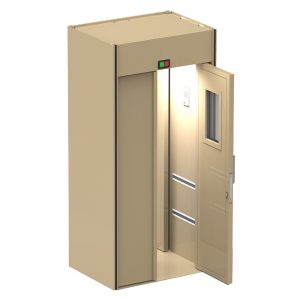

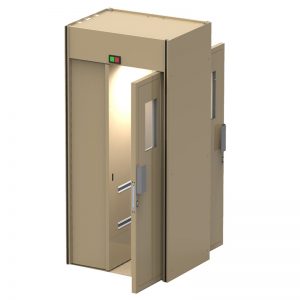

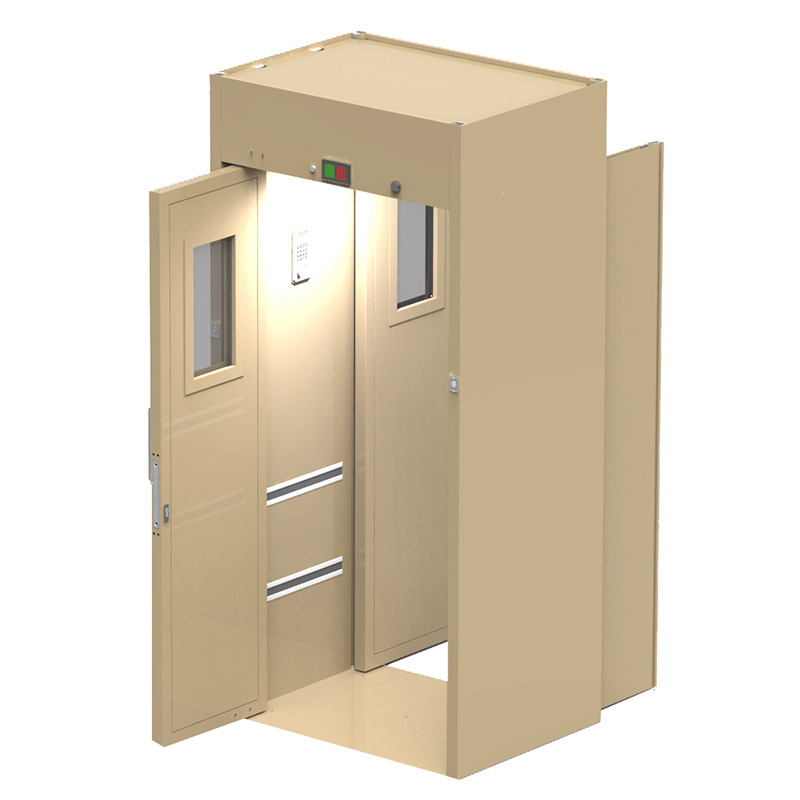

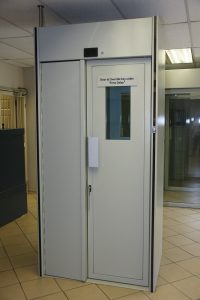

Smallfoot Anti-Hostage Mantrap MKII
- Aesthetically pleasing, robust secure, user-friendly unit.
- Secure single person entry and exit.
- When required door to regulate high volume traffic and good with minimum delay
- Build in Emergency Exit facilities.
- High risk and vulnerable entrances at Banks, Cash Centres, Embassies, Mines, Prisons, Hospitals, Commercial, Government and Financial etc institutions.
- life expectancy of at least 10 years, subject to normal usage and maintenance.
- Access to high risk & vulnerable areas at Banks, Cash Centres, Embassies, Mines, Prisons, Hospitals, Government and Financial etc institutions.
- Control rooms and data centres.
- Emergency Exits.
- Industrial primer coated mild steel construction.
- Accommodates extra-large, claustrophobic persons, wheelchairs, trolleys, bulk items, and fire etc emergency evacuation situations without the need of an adjacent emergency exit door.
- Secure door position monitoring, control and door alarm contacts.
- LED electronic fault finding diagnostic for easy fault finding.
- LED AC power and emergency battery status indicator.
- Costly floor space savings achieved with the small footprint.
- Fits into standard door openings with minor modifications as well as pass through standard doorways, passages, lifts etc to facilitate installations at various venues.
- Dismantled, refurbished and re-used as often as required, whilst handling continuous high volume traffic.
- Discourages hold-up, hostage and tailgating situations.
- Electronic beam detection, enhanced with horizontal hip high and a lower set of infrared curtains consisting of 3 transmitters and 3 responding receivers each inside the cubicle, time delay overrides unlocking and override restriction features with an applicable warning notice fixed to the outside of the unit.
- Remote control and monitoring of above facilities.

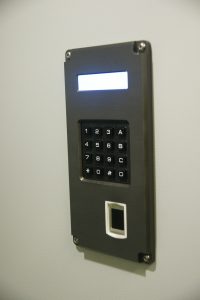

- Interface with all reputable building management systems incorporating technology such as Bio metric readers with audit trail facilities.
- Facilities for Pin Lens cameras behind full length opaque lenses.
- Ballistic levels up to AK 47 and R1 rifles.
- Special Powder coating or final finish to suit individual requirements.
| External: | 1100mm (w) x 800mm (d) x 2305mm (h) |
| Internal Mantrap Mode: | 560mm (w) x 600mm (d) x 2000mm (h) |
| Bulk Goods etc: | 835mm (w) x 2000mm (h) |
| Clear Opening: | 835mm (w) x 2000mm (h) |
| Clear opening required to build in Unit: | 1110mm (w) x 2310mm(h) |
| Power Supply requirements: | Clean constant 220 V AC 15amp |
| Emergency Power Supply provided: | 7Amp hour rechargeable battery supply |
| Compliant: | SANS, 10, 400 A, S &T |
| Credentials: | Agrément Certificate 2015/479 |
