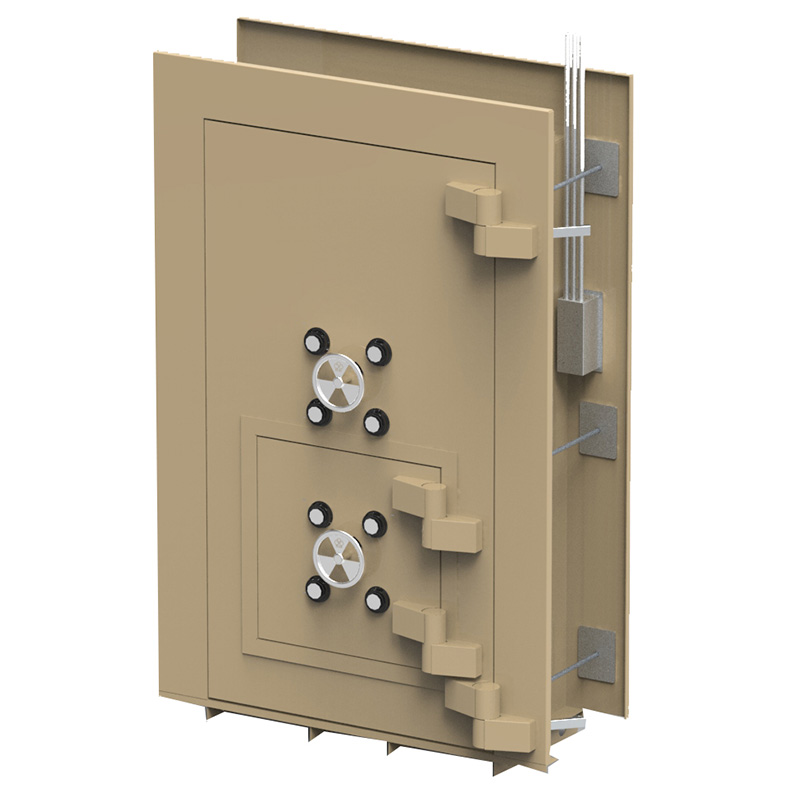

Cat 5 Vault Door
- Aesthetically pleasing, user-friendly robust secure unit that offers the necessary level of protection against mechanical etc attacks.
- SABS SANS 949 - 2019 Cat 5 Vault Door certified.
- High risk and vulnerable vaults and strong rooms
- Banks, Cash Centres, Embassies, Mines, Prisons, Hospitals, Commercial, Government and Financial institutions
- Cash Centres, Embassies, Mines, Prisons, Hospitals, Rugby, Football stadiums
- Overnight protection of cash and valuables
- life expectancy of at least 10 years, subject to normal usage and maintenance.
- High risk and vulnerable vaults and strong rooms etc. at Banks, Cash Centres, Embassies, Mines, Prisons, Hospitals, Commercial, Government and Financial etc institutions.
- Overnight etc protection of cash and valuables.
- Secured by means of bolt in grip frame inside wall aperture.
- Left hand or right hand available.
- With or without emergency access door.
- Configured with four way locking, with five 60mm x 40mm lock bolts on both the leading edge and hinge side of the door and two bolts each top and bottom.
- Lock bolts are sympathetically connected to the locking mechanism and stabilized by means of rack and pinion, affording excellent rigidity and enhanced locking.
- Bolt work locking mechanism locks in an overlock position, further enhancing the entire locking system.
- Door is configured to accept locks such as:
- All Kaba and S&G Combination Locks
- All Kaba and S&G 8 Lever Locks
- S&G “Time Delay” locks
- Extra protection provided to the locking mechanism as well as all locks and re-lockers to resist drilling and manipulation.
- Door, frame and panels are coated with ETCH Primer.
- All other manufactured components are either Electroplated or manufactured of non-corrosive materials such as Aluminium, Stainless Steel or Plastic.
- Redundancy door within main door.
- Heavy duty grill gate.
- Full monitoring and operating system to monitor:
- Door Open/Closed
- Bolt work engaged
- All locks open or closed (main door)
- Emergency door open/closed
- Emergency door bolt work engaged
- All locks open or closed (Emergency Door)
- Tamper detection (both door back panels)
- The electronic monitoring system which relies on a combination of hall sensors and mechanical switches connected to an ITAS Door Module, situated within each door and communicating via RS485 BUS, concealed through the door hinges to a master door monitor module outside of the door.
- 24VDC with battery back-up. Power cables are routed through the hinges (no vulnerable and untidy exposed wiring etc).
- Status from master module provided to the BMS system via dry contact interface board.
- Ethernet conversion.
- Coatings and finishes to cater for individual requirements.
- Sizes, within reason, to cater for individual requirements.
| Clear Opening Size: | 1975mm (high) x 950mm (wide) |
| Outer Frame Size: | 2225 (high) x 1500mm (wide) |
| Clear Wall Opening to accept grip frame: | 2100mm (high) x 1300mm (wide) wall thickness |
