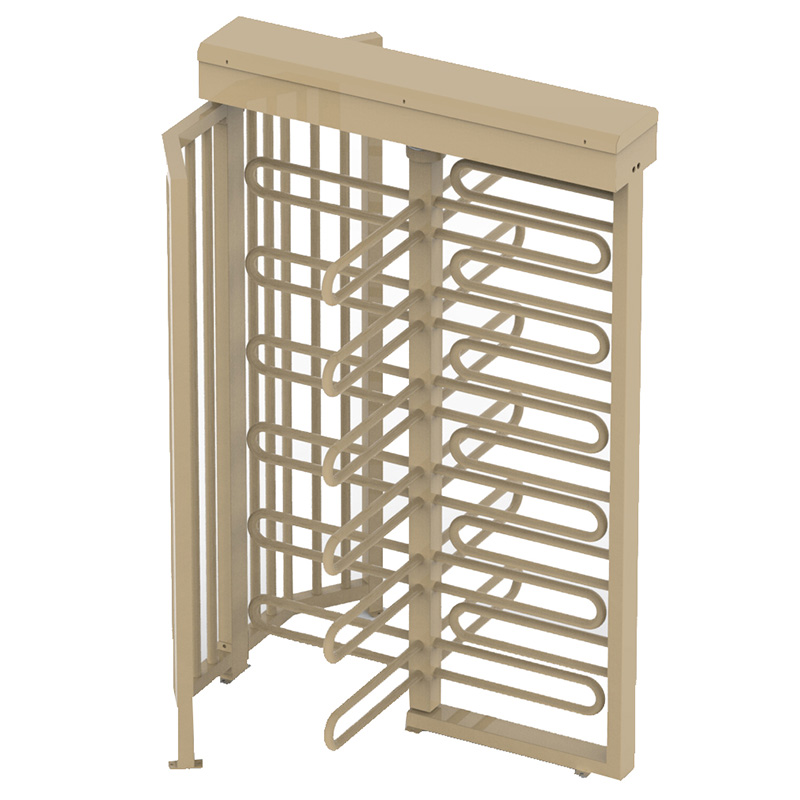

Four Arm Double Turnstile

Medium risk and vulnerable remote entrances at Banks, Cash Centres, Embassies, Mines, Prisons, Hospitals, Rugby, Football etc stadiums, Security Complexes, Commercial, Government and Financial etc institutions.

  • Spindle is suspended on heavy duty thrust bearing at the top with up to 3000kg load bearing capacity therefore no load on bottom pivot point.
  • Suitable for service in harsh and hostile conditions with high traffic volumes such as in prisons, Rugby, Football etc stadiums ect.
  • All steel construction access control barrier with revolving spindle and automatically electro mechanical locking in four positions.
  • Mechanical key override for emergency purposes.
  • Resist unauthorised physically force entry.
  • Stand alone bolt together construction with provision for both foot and side anchoring. No welding required for installations.
  • Single entry and exit.
  • Mantrap facilities (Mantrap Unit).
  • Separate Bi-Directional controlled entry and exit (Double Unit).
  • Shared Bi-Directional controlled entry and exit (Other Units).
  • Demountable and re-useable elsewhere during effective 10 years lifespan.
  • Indexing is electronically controlled thereby eliminating service and damage prone mechanical limit switches.
  • 14amp hour 12volt rechargeable emergency battery supply .
  • Remote control and monitoring of above facilities.
  • Interface with all reputable building management systems with bio-metric fingerprint entry and exit identification with audit trail etc facilities.
  • Stainless Steel construction.
  • Corrosion resistant for rust prone and coastal installations.
  • Powder coating or other final finish to customer requirements.
 Description:Four Arm Single and MantrapFour Arm Double
External: 2150mm (h) x 1550mm (w) x 1060 (d) 2150mm (h) x 2220mm (w) x 1060mm (d)
Clear opening required to build in Unit:2165mm (h) x 1565mm (w) 2165mm (h) x 2230mm (w)



Power Supply requirements:Clean constant 220 V AC 15amp
